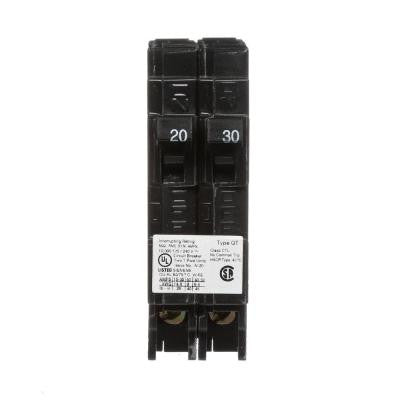

20/30 Amp Single Pole Tandem Type QT Circuit Breaker

20/30 Amp Single Pole Tandem Type QT Circuit Breaker

Article Number:
  • $ 936


One 20 Amp and one 30 Amp single pole circuit breaker . Twin 1/2 in. frame . Plug in type . Space saving design allows 2 poles to fit in a 1 in. panel space . 120/240 VAC . UL listed . CSA certified . HACR rated . Designed for residential/commercial applications . Use for overload and short-circuit protection of your electrical system

Siemens space saving, plug in circuit breakers are intended for use in Siemens EQ, Siemens Ultimate, ITE, and Gould load centers and meter combinations that are rated to accept type QT breakers. Check wiring diagram to confirm. To ensure the warranty on a Siemens panel is not voided, the use of Siemens breakers is required. The duplex breakers provide 2 Single Pole breakers in the space typically required for only one standard breaker. These duplex, 1/2 in. frame breakers are ideal when new circuits are required in a panel that has no available spaces. Siemens type QT dual circuit breakers are 1 in. wide and consist of (2) 1-pole breakers, in varying combinations of ampere ratings from 15 to 30 Amp. Type QT quad circuit breakers are 2 in. wide and consist of either (1) 2-pole and (2) 1-pole, or (2) 2-pole breakers. 2-pole constructions range from 15-50 Amps and are available with internal common trip. All type QT circuit breakers are plug-in style and load terminals are provided with the units. They are rated for 120/240-Volt AC and calibrated for 40C maximum ambient applications. The standard interrupting rating is 10k AIC.
