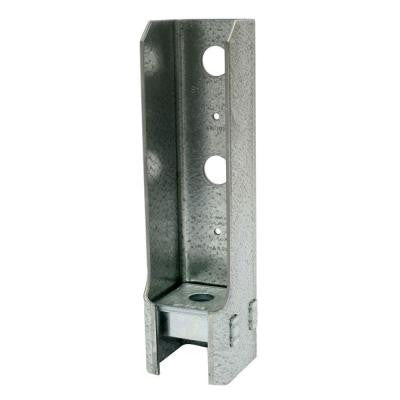

10-Gauge Bolted Holdown

10-Gauge Bolted Holdown

Article Number:
  • $ 1960


Can be installed directly on the sill plate or raised above it . Suitable for back-to-back applications where eccentricity is a concern . Designed to provide loads for intermediate-load-range shearwalls, braced-wall-Panels and lateral applications . Made from 10-Gauge steel . Galvanized for extra corrosion resistance . Install with 5/8 in. anchor bolt and 5/8 in. stud machine bolts

Simpson Strong-Tie offers a wide variety of bolted holdowns offering low-deflection performance for a range of load requirements. The HD5B bolted holdown features a unique seat design which greatly minimizes deflection under load. HDB holdowns are self-jigging, ensuring that the code-required minimum of 7-Bolt Dia. from the end of the post is met.
